The Cummins X15 Efficiency Series diesel has won the Truck Writers of North America’s 2016 Technical Achievement Award. The presentation was made March 1, during an awards luncheon at the American Trucking Association’s Technology & Maintenance Council annual meeting in Nashville TN.
“The engine won for its advanced combustion design that includes a little-used Atkinson Cycle, and other features,” said Jim Park, chairman of the TWNA awards committee. “It beat out four other finalists who had previously topped a pool of 15 candidates for the award. A panel of industry journalists from Canada and the United States debated and voted over a period of several weeks.”
The panelists nominated candidates from the products and services they observed over the previous year, Park said. To be eligible, a candidate must show technical innovation, have a wide applicability and availability in trucking, and offer significant operating benefits. For the first time, the award is named after Jim Winsor, a 50-year truck journalist and TWNA member who was active in TMC and a predecessor organization. Winsor passed away in 2015.

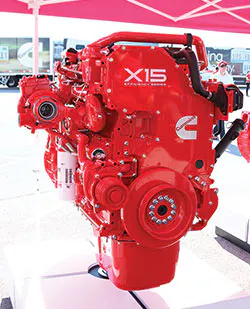

The 14.9-liter diesel gains 3% in fuel efficiency over the preceding model, the ISX15, through improvements to air-handling, combustion efficiency, reduced parasitic losses and advanced electronics, Proctor said. Maintenance should cost 40% less than previous engines over five years.
Cummins redesigned its ISX15 to meet 2017 federal greenhouse gas and fuel economy requirements, and introduced two models called X15 Performance and X15 Efficiency. The Efficiency version employs an Atkinson Cycle in its valve action that adds fuel efficiency important to fleet managers, said John Baxter, a freelance technical writer, former mechanic, and a member of the TWNA panel. That caught the attention of his colleagues in the voting.
“The engine’s valve events are modified so that compression is slightly limited, allowing for greater-than-normal expansion during the power stroke that follows,” he said. “That means that the gases expand to 20 times their volume at the pistons’ top center by the time they are released, as opposed to standard expansion factors in the range of 15-17 to 1. Allowing the burning gases more room to expand captures energy that is normally thrown away when the exhaust valve opens.”
“The engine also features a new piston design that conducts heat more effectively away from the combustion bowl and into the cooling system. This takes considerable heat stress off the oil, allowing longer change intervals, and allows use of a smaller oil pump, reducing the parasitic loss associated with driving it. We congratulate Cummins on the originality of their re-design of the X15.”
The other finalists were Accuride’s EverSteel wheel with a special anti-corrosion treatment; Mack and Volvo “wave” piston, part of engine upgrades to comply with new greenhouse gas and fuel economy regulations; SAF-Holland’s P89 disc brake, a high-performance, lightweight and moderate-cost braking product; and Volvo iSee and Mack Predictive cruise control, which “learns” routes and operates a truck’s powertrain to gain maximum efficiency.
Park compiled the voting results and, at the luncheon on Wednesday, presented the award to Proctor; Jim Nebergall, X15 program director; and Mario Sanchez-Lara, Cummins’ director of on-highway communications.
TWNA first presented the Technical Achievement Award in 1991 to Grote Industries for its red LED marker lamp, and has since honored companies large and small for their products and services. Winner of the 2015 award was Eaton's Procision medium-duty, seven-speed, dual-clutch automated transmission.
