Coxreels broadens vacuum reel options

May 3, 2022
New 1¼-inch V-100 Series model, which comes with or without hose, features a smaller frame size

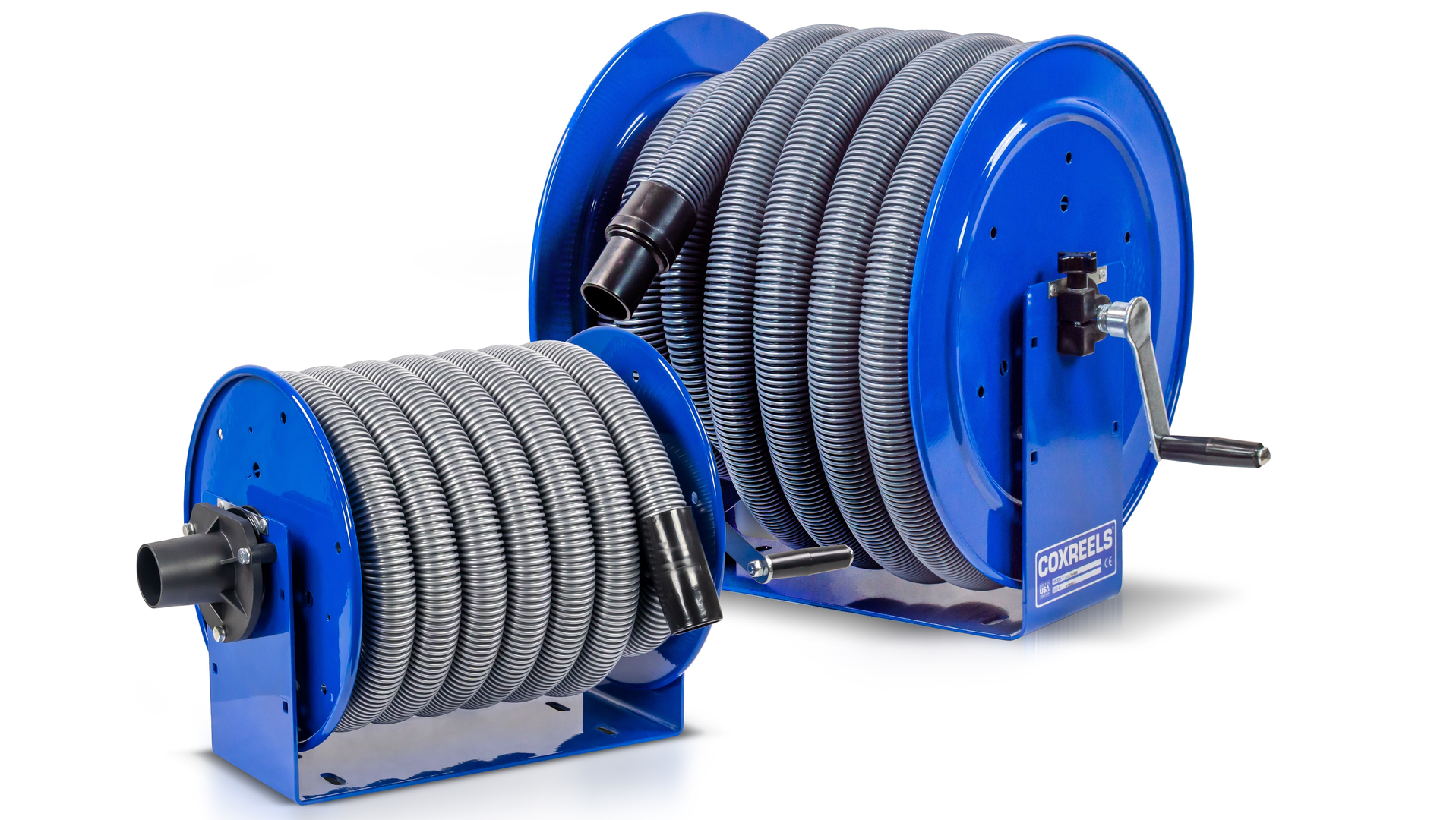

Coxreels recently improved and expanded its V-100 Series product line with a new 1¼-inch vacuum hose reel that comes without hose (V-112-735) or with hose (V-112H-735).

The new model has a smaller frame size, featuring discs that are 12 inches in diameter instead of the original 17-inch discs, and is designed for use with 35 feet of 1¼-inch vacuum hose, Coxreels said. The outlet connecting to the hose remains 1½ inches, and the company’s 1¼-inch hose comes equipped with 1½-inch slip cuffs on both ends for maximum flow.

In addition to the new models, the swivel was improved on the entire product line, the company added. The new swivel design still allows for the connection of multiple hose sizes by using the inside and the outside of the housing, but a greater gradual taper increases the amount of compatible inlet hose cuffs. This remains important because retail shop vacuums are coming with larger and larger hoses, some as big as 2½ inches. The swivel also includes hidden improvements via an enhanced O-ring sealing system for greater vacuum consistency and performance.

The hose has a flexible “crush-proof” smooth interior hose suitable for commercial cleaning applications and is equipped with standard 1½-inch threaded hose cuffs on both hose sizes.
